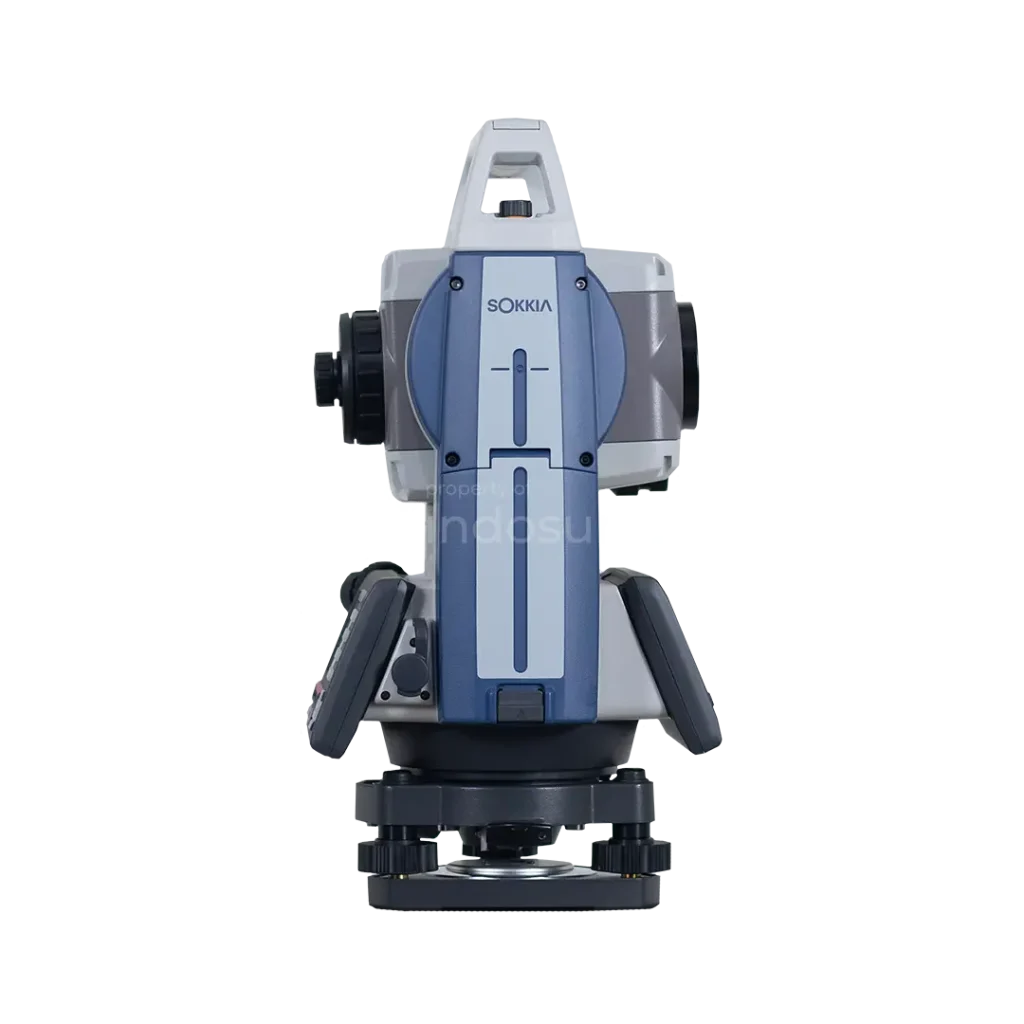

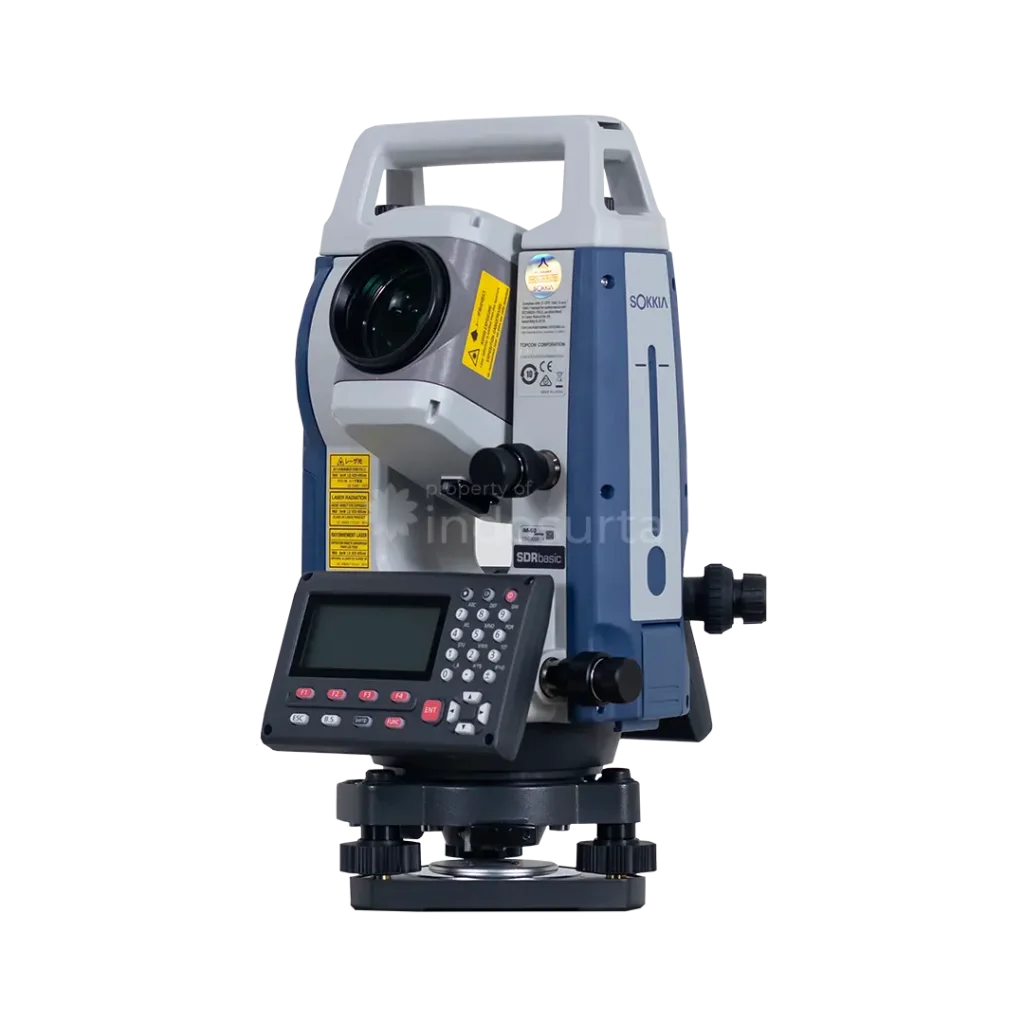

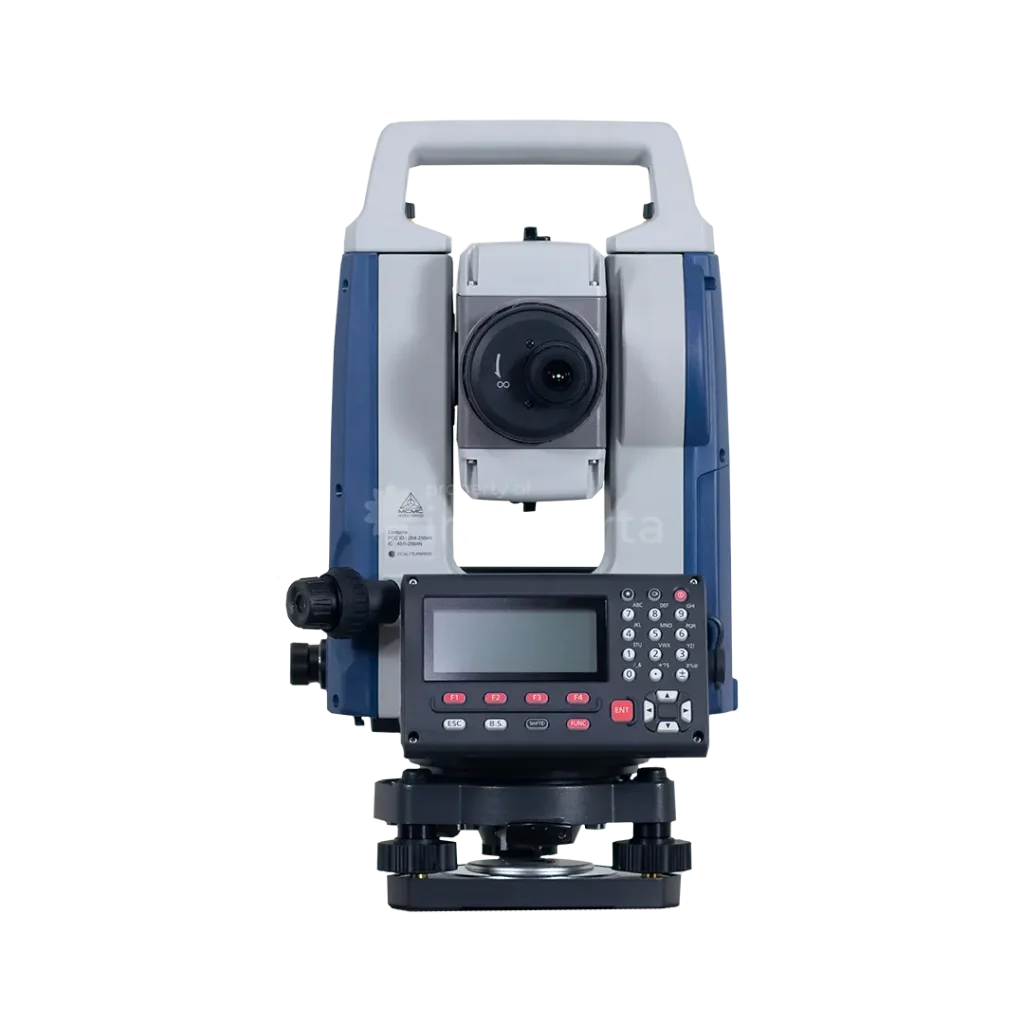

Total Station Sokkia IM-62

Konsultasi Produk

Deskripsi

Total Station Sokkia IM-62 kini telah hadir di dunia pemetaan untuk anda yang sedang mengerjakan pekerjaan pengukuran secara profesional dan memerlukan ketelitian yang akurat. Sokkia IM-62 memiliki akurasi ketelitian hingga 2 detik yang tentu saja dapat mengukur dengan akurat.

Selain itu Total Station Sokkia IM-62 mampu mengukur jarak 500 meter tanpa prisma (reflectorless) dan jarak 4000 meter atau 4 km dengan bantuan prisma. Lalu memori penyimpanan internal yang mampu simpan hingga 50.000 titik, eksternal mampu simpan hingga 64GB.

Seri IM-62 memiliki teropong dengan pembesaran hingga 30x, dilengkapi dengan laser plummet, proteksi IP66 perlindungan terhadap air, serta baterai Li-ios BDC71 yang mampu beroperasi sekitar 14 jam. Dengan keunggulan tersebut tentu saja alat ini sangat ideal untuk pilihan pekerjaan pengukuran profesional anda yang sangat akurat.

Beli juga: Sensor/Payload Drone DJI Zenmuse L3

Total Station Sokkia IM-62 tersedia di Indosurta, baik itu di cabang Batam, Medan, Palembang, Cikarang, Semarang, Surabaya, Tangerang, Balikpapan, Banjarmasin, Samarinda, Manado, Kendari, dan Makassar. Segera hubungi Indosurta untuk melakukan penawaran lebih lanjut dan dapatkan juga harga spesial diproduk lainnya dari Indosurta.

Spesifikasi Total Station Sokkia IM-62

Telescope
- Magnification / Resolving power: 30x / 2.5″
- Others: Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for (EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle measurement
- Minimum display: 1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil)
- Accuracy (ISO 17123-3:2001): 2″
- Detecting: 2 sides
- Dual-axis compensator: Dual-axis liquid tilt sensor, working range: ±6′
- Collimation compensation: On/Off (selectable)
Distance measurement
- Laser output: Reflectorless mode : Class 3R / Prism/Sheet mode : Class 1
- Measuring range (under average conditions)
  - Reflectorless: 0.3 to 500m (1,640ft.)
  - Reflective sheet:
    - RS90N-K: 1.3 to 500m (4.3 to 1,640ft.),
    - RS50N-K: 1.3 to 300m (4.3 to 980ft.),
    - RS10N-K: 1.3 to 100m (4.3 to 320ft.)
  - Mini pole prism OR1PA: 1.3 to 500 m (4.3 to 1,640 ft.)
  - Compact prism CP01: 1.3 to 2,500 m (4.3 to 8,200 ft.)
  - Standard prism AP01AR: 1.3 to 4,000 m (4.3 to 13,120 ft.)
- Minimum display: Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable)
- Accuracy (ISO 17123-4:2001) (D=measuring distance in mm):
  - Reflectorless: (2 + 2ppm x D) mm
  - Reflective sheet: (2 + 2ppm x D) mm
  - Prism: (1.5 + 2ppm x D) mm
- Measuring time
  - Fine: 0.9s (initial 1.5s)
  - Rapid: 0.6s (initial 1.3s)
  - Tracking: 0.4s (initial 1.3s)
OS, Interface and Data management
- Operating system: Linux
- Display / Keyboard: Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight
- Operation panel: On both sides
- Data storage:
  - Internal memory: Approx. 50,000 points
  - External memory: USB flash memory (up to 64 GB)
- Interface: Serial RS-232C, USB2.0 (Type A for USB flash memory)
  - Bluetooth modem (option): Bluetooth Class 1.5, Operating range: up to 10m
General
- Laser-pointer: Coaxial red laser using EDM beam
- Levels:
  - Graphic: 6’ (Inner Circle)
  - Circular level (on tribrach): 10′ / 2mm
- Plummet
  - Optical: Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
  - Laser (option): Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product
- Dust and water protection / Operating temperature: IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
- Size with handle: 200(W)x 181(D)x 348(H) mm (Display on both sides)
- Instrument height: 192.5mm from tribrach mounting surface
- Weight with battery & tribrach: 5.3 kg (11.7 lb)
Power supply
- Battery: Li-ion rechargeable battery BDC71
- Operating time (20ºC): Approx. 14hours
Application program
- On board:
- REM Measurement
- 3D Coordinate Measurement
- Resection
- Stake Out
- Topography Observation
- Offset Measurement
- Missing Line Measurement
- Intersection
- Surface Area Calculation
- Route Surveying
- Point to Line
